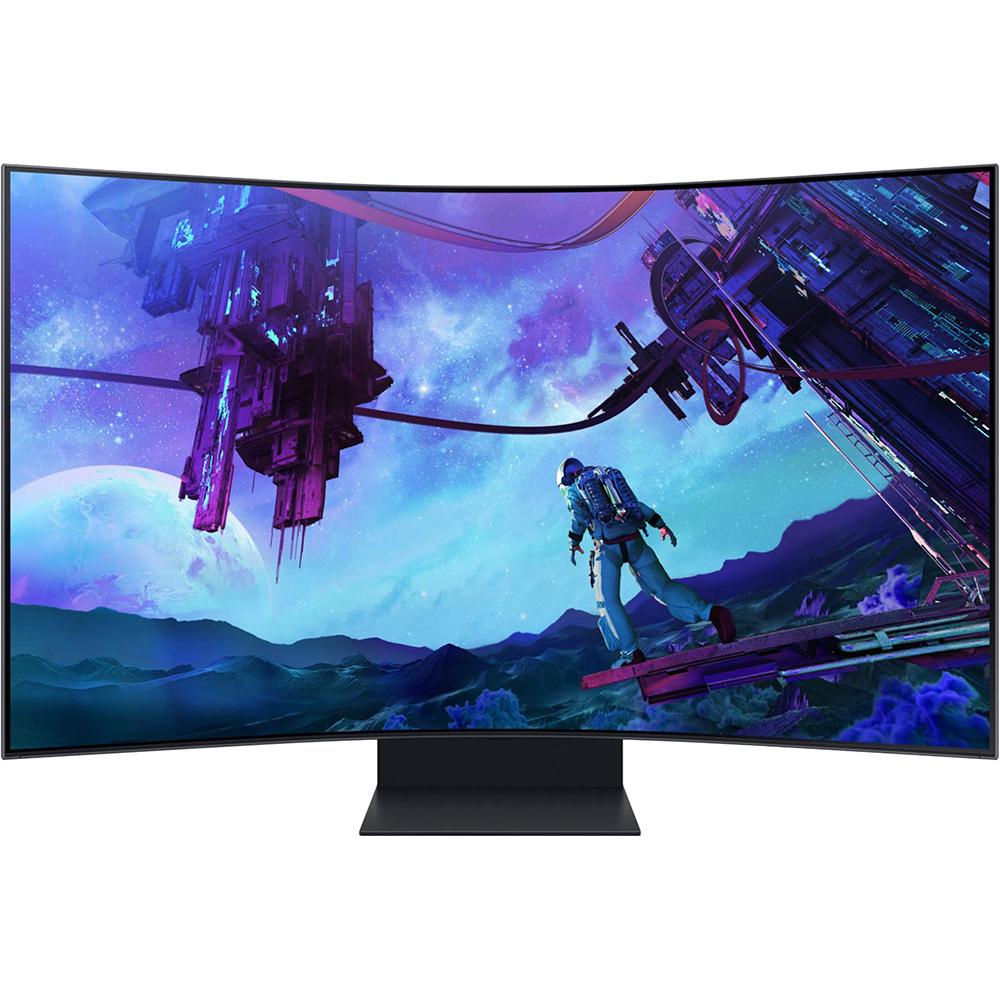

Samsung Odyssey Ark 2nd Gen - A new frontier in gaming.

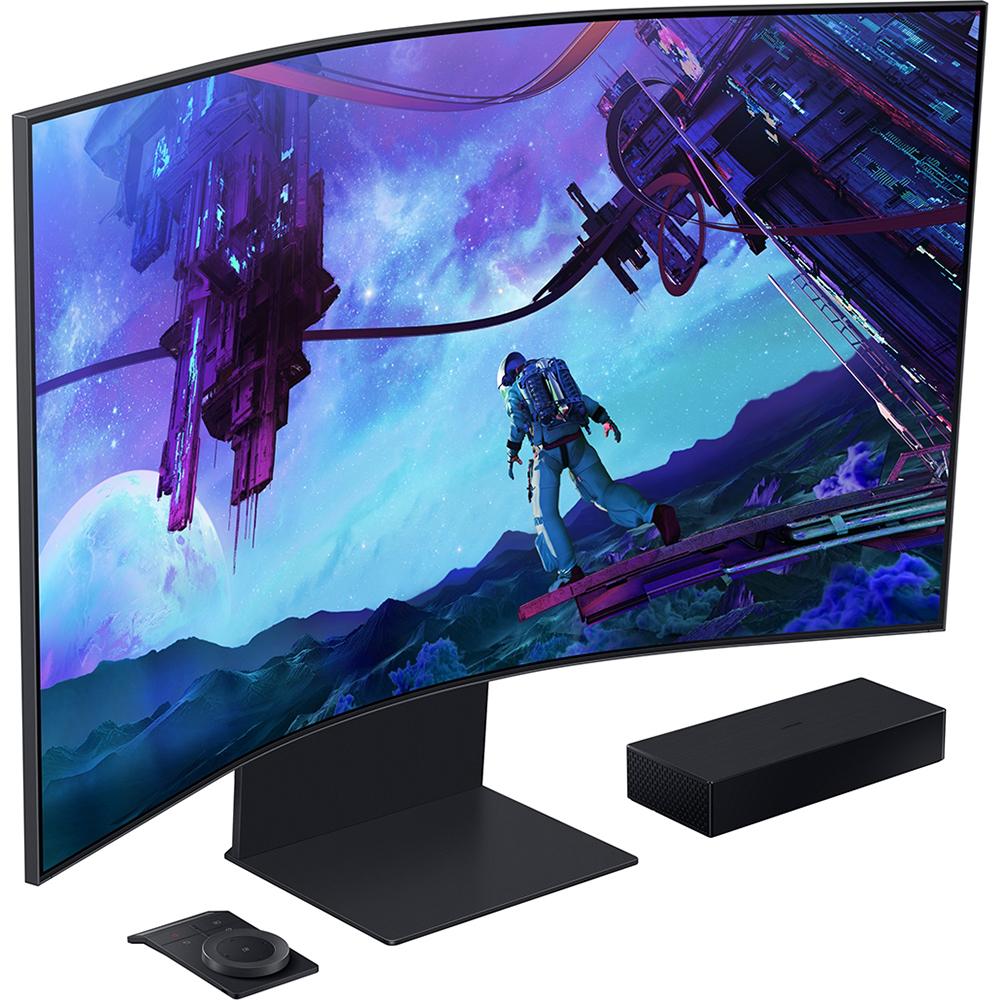

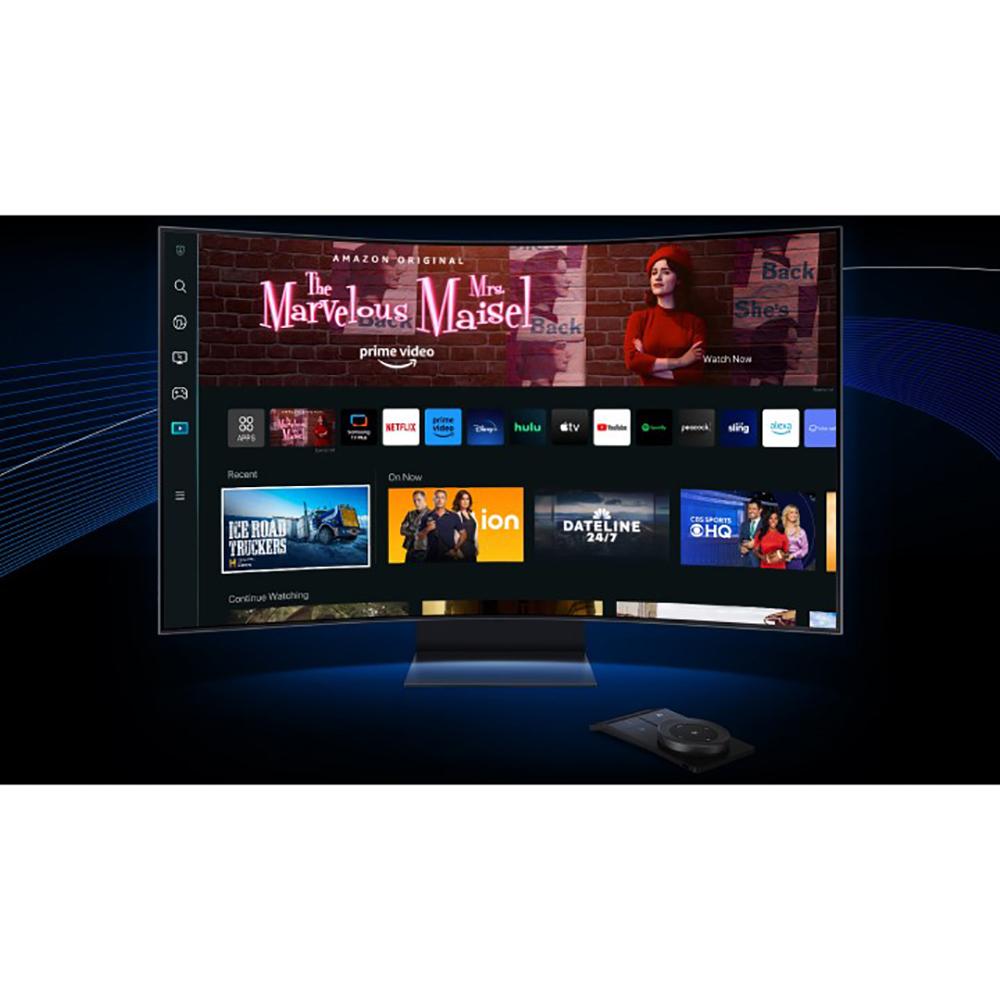

The second generation of Samsung's Odyssey Ark has enhanced Multi View, now with up to 4 inputs at once, including an all-new Display Port 1.4 connection. The 55” rotating screen with 1000R curvature enables maximum immersion, featuring 4K UHD resolution with 165Hz and 1ms response time for hyper-fast action. With added KVM Switch you have full control of your command center with a single mouse and keyboard. Cockpit Mode and Eclipse Lighting optimizes screen environment and Sound Dome Technology provides an engulfing soundscape. Gaming Hub and Smart TV apps allow instant access to top streaming services. The solarpowered Ark Dial controls all functions including Flex Move Screen, Quick Settings, and Game Bar. Featuring Quantum Matrix Technology, Neural Quantum Processor Ultra, AMD FreeSync Premium Pro and HDR 10+ Gaming for a competitive edge.

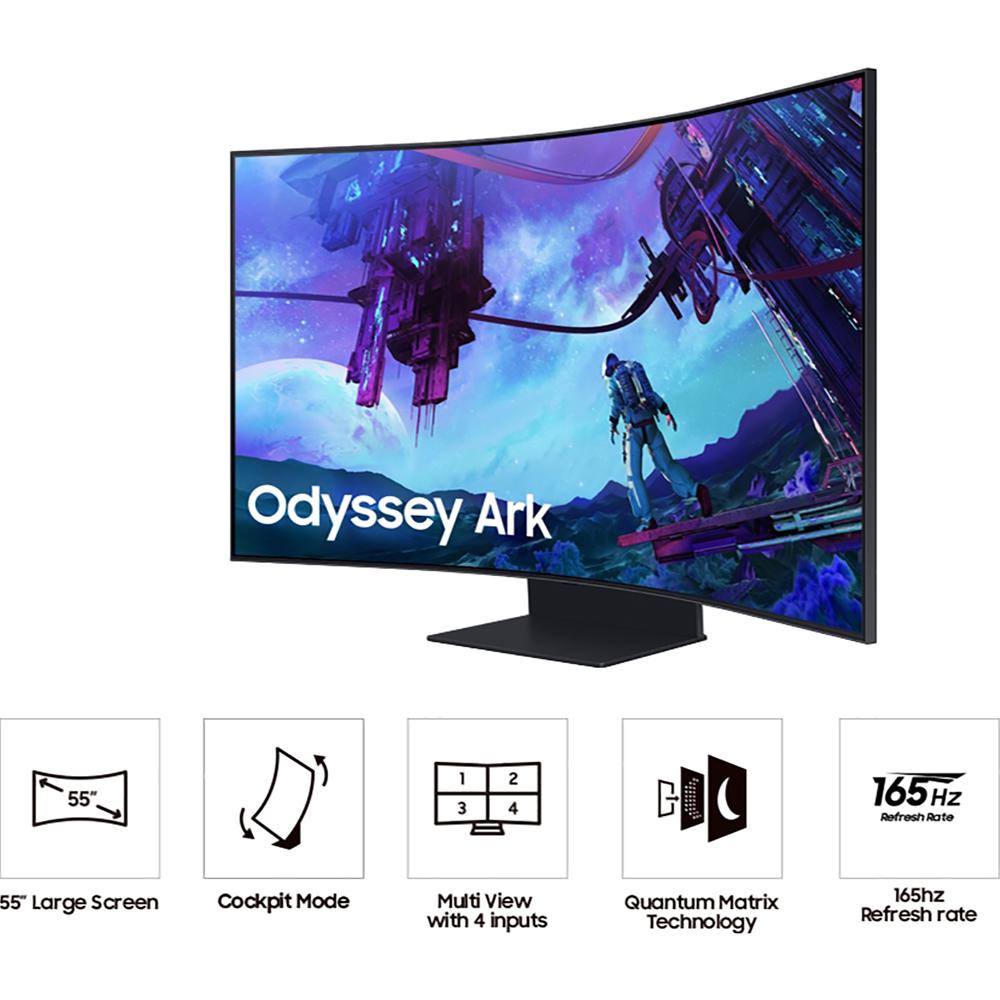

Key Features:

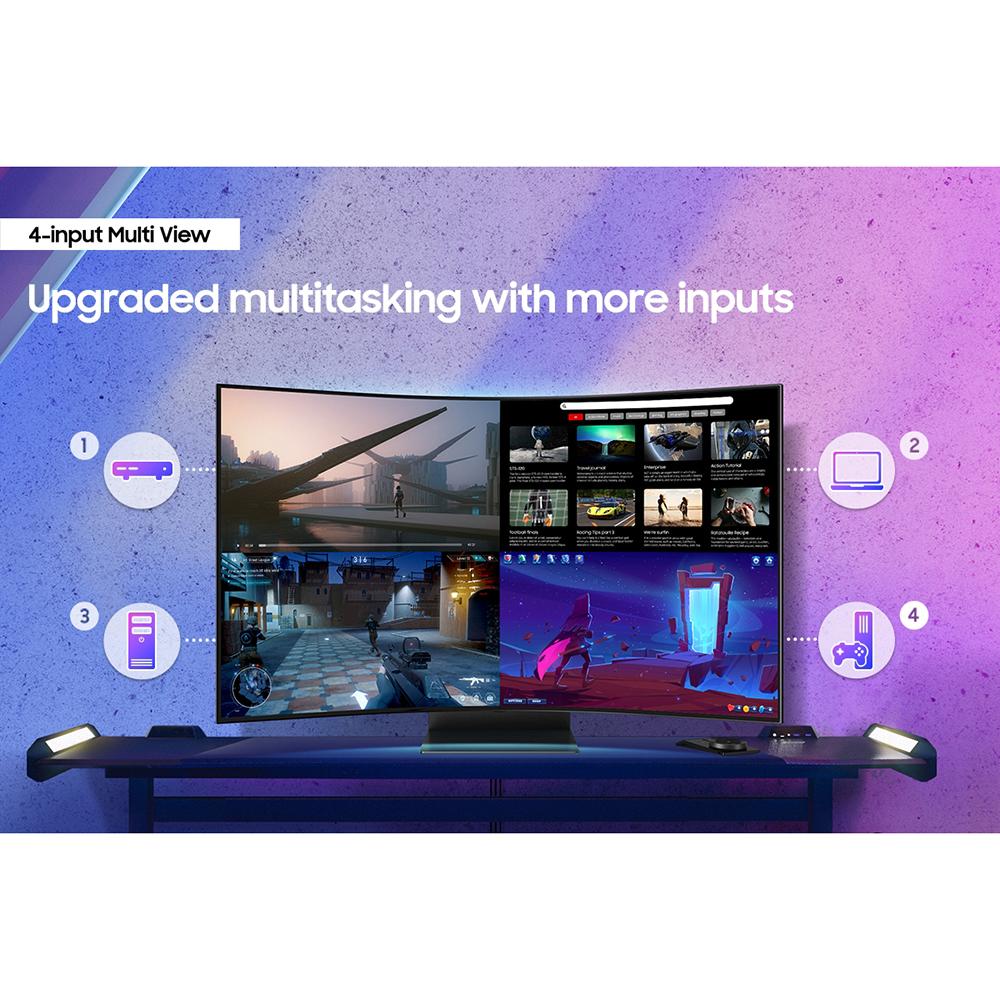

Upgrade your multitasking with more inputs

A whole new way to view. With the upgraded Multi View, connect and see up to 4 different inputs at once, including the addition of all new Display Port. You can even play console and PC games at the same time. Focus on your games while you connect with friends and look up the best strategies all on one screen, while keeping your desk free from wires and clutter.

Overwhelm your senses

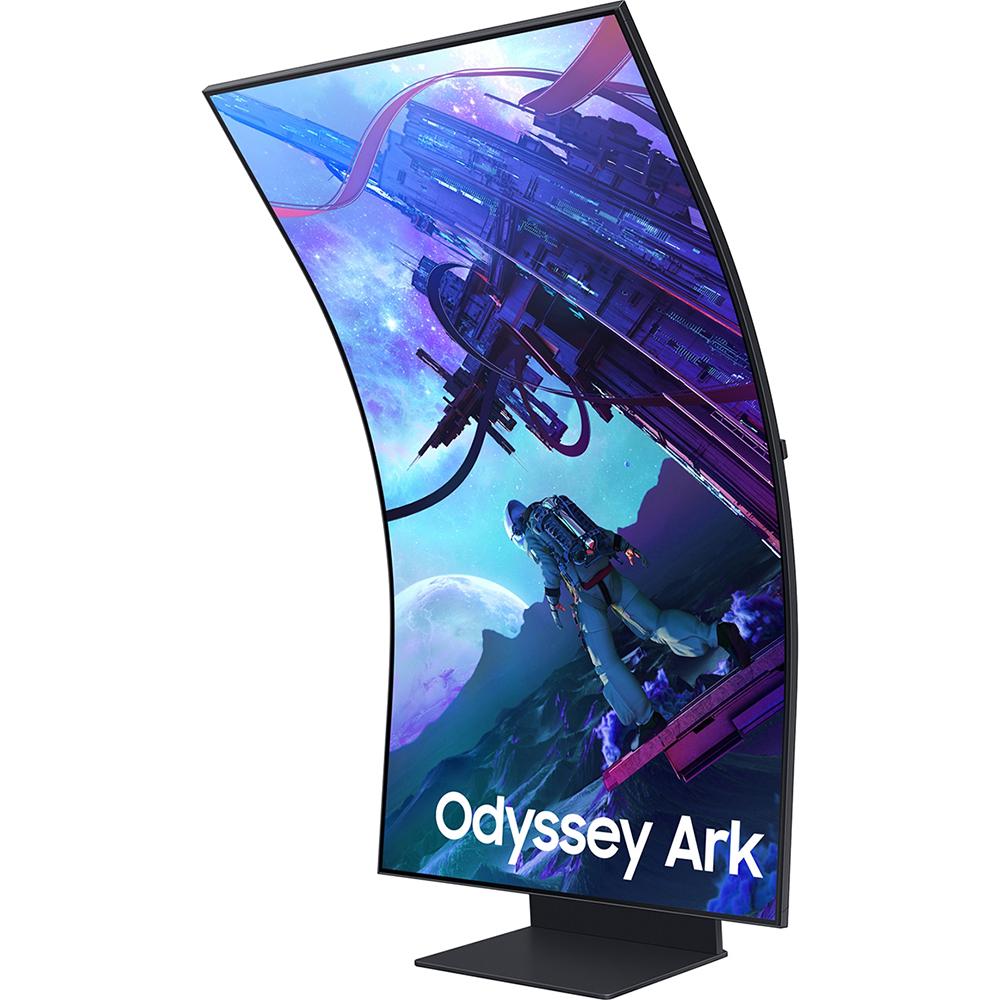

Be immersed in lifelike images. The 55-inch screen delivers a picture that overwhelms your senses, creating an adrenaline-fueled experience superior to anything seen before. This is upgraded by 1000R curvature to wrap around your field of vision for maximum immersion.

Incredible 4k gaming refresh rates

Conquer every enemy, even at extreme speed. 165Hz refresh rate eliminates lag for exhilarating gameplay with ultra-smooth action. Identify enemies with elite precision with a 1ms response time, precise mouse movements, and blur-free frames, with minimized ghosting.

Enter a new era of immersion

Revolutionary Quantum Matrix Technology with Quantum Mini LEDs creates controlled brightness and perfect contrast for refined definition. The advanced 14-bit back light unit allows detailed HDR control which creates unmatched picture quality.

Multiple inputs, one control station with KVM Switch

Your command center gives you full control. Use multiple PCs and builtin apps on the Odyssey Ark with a single mouse and keyboard. Move your mouse across all your connected devices’ displays on one screen to control a different device in a snap.

Product Specifications:

Display

Screen Size (Class): 55

Flat / Curved: Curved

Active Display Size (HxV) (in.): 47.6 (H) x 26.8 (V)

Screen Curvature: 1000R

Aspect Ratio: 16:09

Panel Type: VA

Brightness (Typical): 600 cd/m2

Brightness (Min): 420 cd/m2

Contrast Ratio (Static): 1,000,000:1 (Static)

Contrast Ratio (Dynamic): Mega DCR

HDR(High Dynamic Range): Quantum HDR 32x

HDR10+: HDR10+ Gaming

Mini LED Local Dimming: Yes (1,056 zones)

Resolution: 3,840 x 2,160

Response Time (ms): 1ms(GtG)

Viewing Angle (H/V): 178°(H)/178°(V)

Color Support: Max 1B

Color Gamut (DCI Coverage): 95%(Typ.)

Frame Rate Max: 165Hz

Eye Saver Mode: Yes

Flicker Free: Yes

Quantum Dot Color: Yes

Game Mode: Yes

Image Size: Yes

Windows Certification: Windows 10

FreeSync: FreeSync Premium Pro

Off Timer Plus: Yes

Virtual AIM Point: Yes

Game Bar: Yes

Gaming Hub: Yes (KR, US, CA, BR, GB, FR, DE, IT, ES)

HDMI-CEC: Yes

Adaptive Picture: Yes

Super Ultrawide GameView: Yes

KVM Switch: Yes

Smart Service

Smart Type: Smart

Operating System: Tizen

Bixby: US English, UK English, India English, Korean, French, German, Italian, Spanish, BR Portuquese (features vary by language)

Built-in Voice Assistant: Alexa

TV Plus: Yes

Universal Guide: Yes (US only)

Video Communication: Yes

Web Service: Microsoft 365

SmartThings Hub: Yes

Multi Device Experience: Mobile to Screen, Screen initiate mirroring, Screen Sound to Mobile, Sound Mirroring, Wireless On

Wireless DeX: Yes

My Contents: Yes

Multi View: Yes

Smart Calibration: Basic

NFT: Nifty Gateway

Tap View: Yes

Workspace: Yes

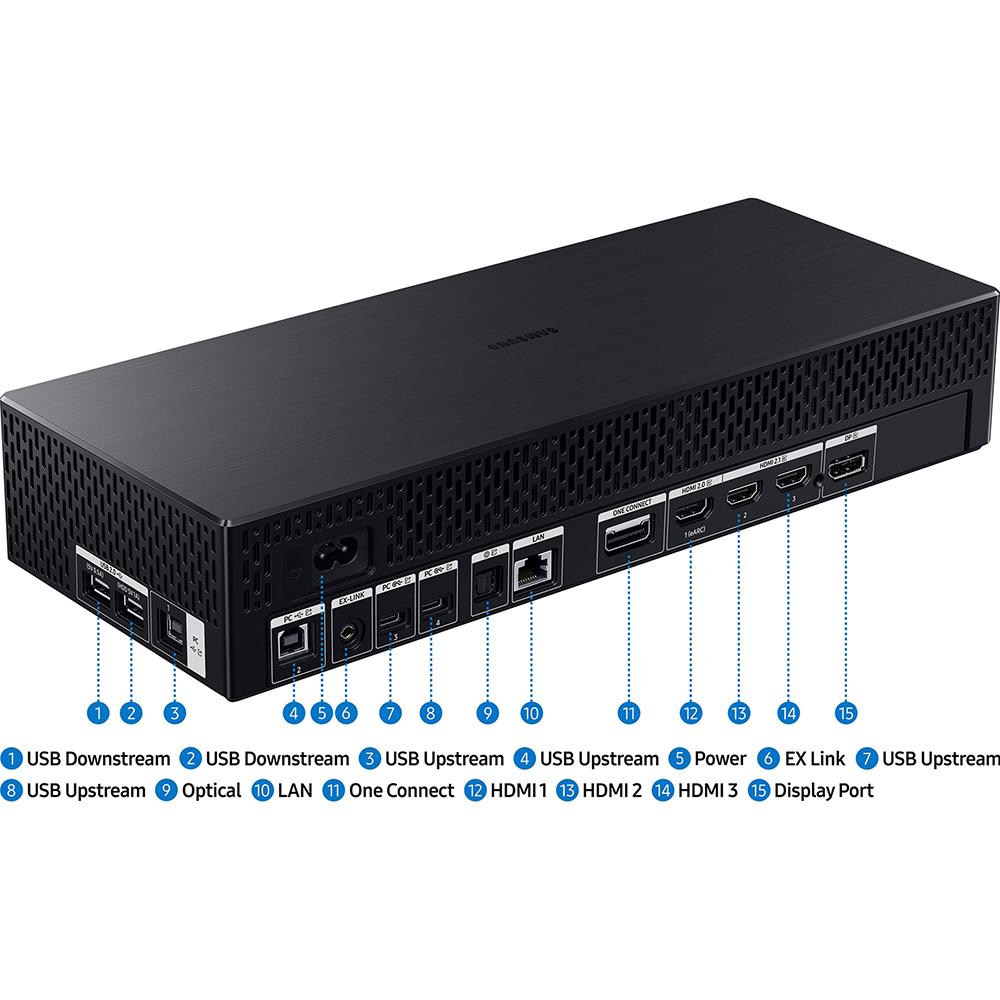

Interface

Wireless Display: Yes

Display Port: 1 EA

Display Port Version: 1.4

HDCP Version (DP): 2.2

HDMI: 3 EA

HDMI Version: 2.1x2, 2.0x1

HDCP Version (HDMI): 2.2

Headphone: Yes

USB Ports: 2

USB Hub Version: 2

Ethernet (LAN): 1 EA

WiFi: Yes (WiFi5)

Bluetooth: Yes (5.2)

Audio

Speaker: Yes

Speaker Output: 60W

Adaptive Sound: Yes

Operation Conditions

Temperature: 0℃~40℃ (32 F ~ 104 F)

Humidity: 10%~80%, Non-Condensing %

Calibration

Factory Tunning: Yes

Color Mode: Eco/Standard/Dynamic/Movie/Graphic/Entertain/Filmmaker Mode

Factory Calibration Report: Yes

Design

Front Color: Black

Rear Color: Black

Stand Color: Black

Stand Type: HAS PIVOT

HAS (Height Adjustable Stand):

Landscape: 0~270mm (±5mm), 0~10.6 in. (±0.2 Inches)

Portrait: 0~30mm (±5mm), 0~1.2 in. (±0.2 Inches)

Tilt:

Landscape: -10˚(±2˚)~10˚(±2˚)

Portrait: -13˚(±2˚)~10˚(±2˚)

Pivot: -90˚(±2˚)~90˚(±2˚)

Wall Mount: 200 x 200

Power

Power Supply: AC100-240V 50/60Hz

Power Consumption (Max): 140 W

Type: Internal Power

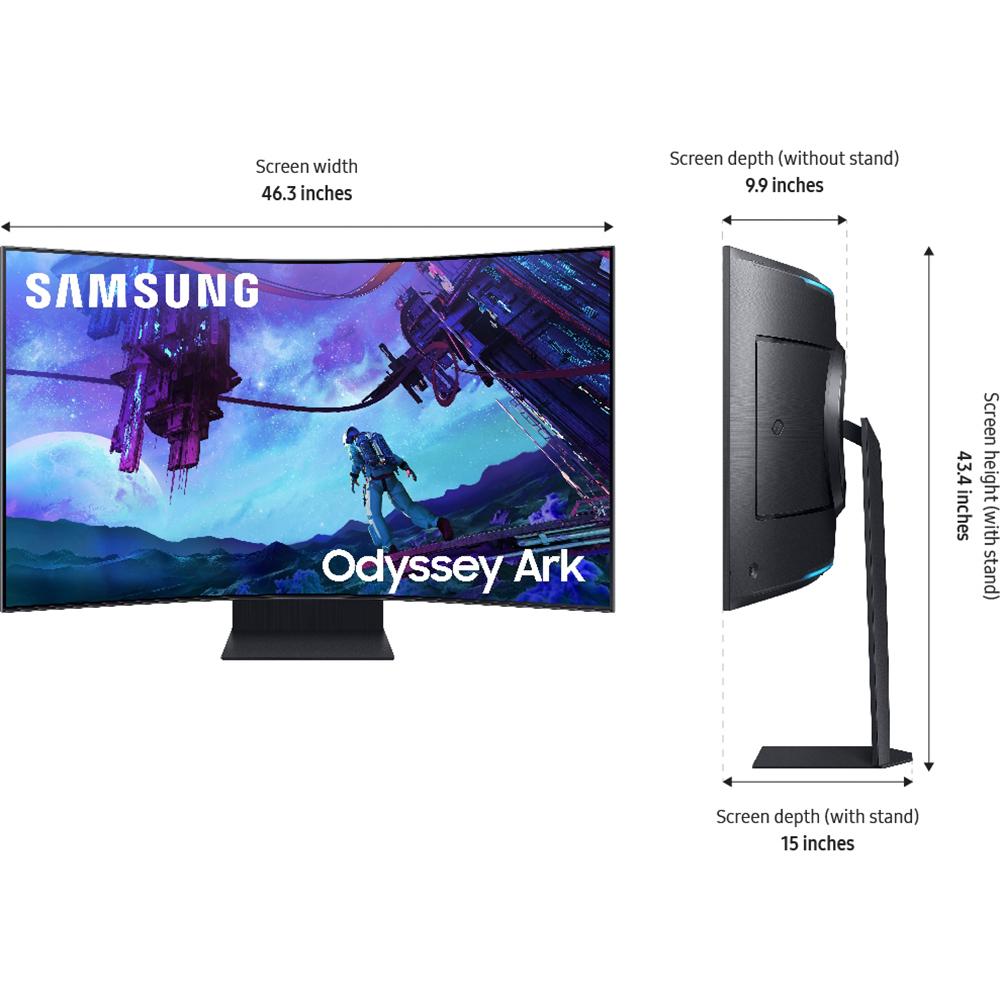

Dimension

Set Dimension with Stand (WxHxD): 1174.8 x 1102 x 379 mm / 46.3 x 43.4 x 15 in.

Set Dimension without Stand (WxHxD): 1174.8 x 704.8 x 251.8 mm / 46.3 x 27.8 x 9.9 in.

Package Dimension (WxHxD): 1362 x 922 x 317 mm / 53.6 x 36.3 x 12.5 in.

Weight

Set Weight with Stand: 41.5 kg / 91.5 lbs.

Set Weight without Stand: 21.1 kg / 46.5 lbs.

Package Weight: 57.1 kg / 125.9 lbs.

Accessory

Power Cable Length: 1.5 m

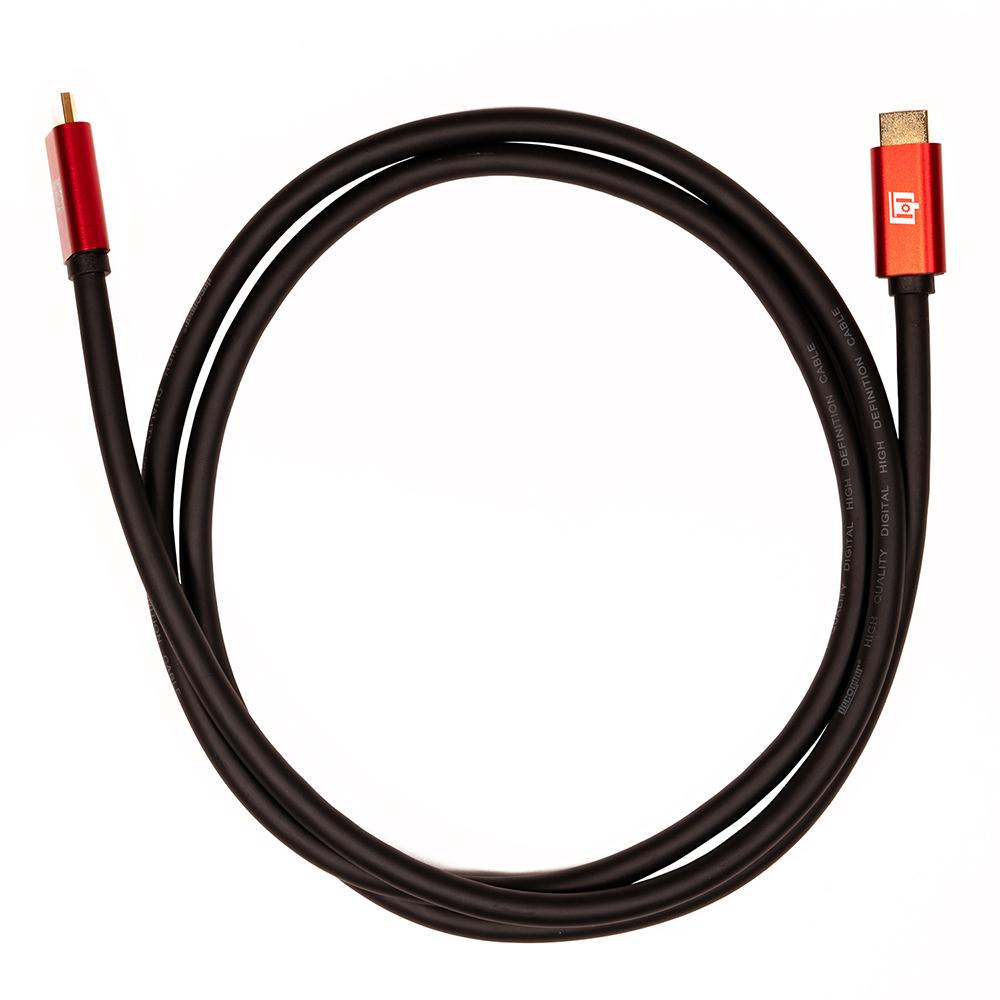

HDMI Cable: Yes

Remote Controller: Yes

Certification and Compliance

UL Glare Free: Yes
